Hypertext Transfer Protocol



The Hypertext Transfer Protocol (HTTP) is an application protocol for distributed, collaborative, hypermedia information systems.[1] HTTP is the foundation of data communication for the World Wide Web, where hypertext documents include hyperlinks to other resources that the user can easily access, for example by a mouse click or by tapping the screen in a web browser.
Development of HTTP was initiated by Tim Berners-Lee at CERN in 1989. Development of early HTTP Requests for Comments (RFCs) was a coordinated effort by the Internet Engineering Task Force (IETF) and the World Wide Web Consortium (W3C), with work later moving to the IETF.
HTTP/1.1 was first documented in RFC 2068 in 1997. That specification was obsoleted by RFC 2616 in 1999, which was likewise replaced by the RFC 7230 family of RFCs in 2014.
HTTP/2 is a more efficient expression of HTTP's semantics "on the wire", and was published in 2015; it is now supported by virtually all web browsers[2] and major web servers over Transport Layer Security (TLS) using an Application-Layer Protocol Negotiation (ALPN) extension[3] where TLS 1.2 or newer is required.[4][5]
HTTP/3 is the proposed successor to HTTP/2,[6][7] which is already in use on the web, using UDP instead of TCP for the underlying transport protocol. Like HTTP/2, it does not obsolete previous major versions of the protocol. Support for HTTP/3 was added to Cloudflare and Google Chrome in September 2019,[8][9] and can be enabled in the stable versions of Chrome and Firefox.[10]


Technical overview


HTTP functions as a request–response protocol in the client–server computing model. A web browser, for example, may be the client and an application running on a computer hosting a website may be the server. The client submits an HTTP request message to the server. The server, which provides resources such as HTML files and other content, or performs other functions on behalf of the client, returns a response message to the client. The response contains completion status information about the request and may also contain requested content in its message body.
A web browser is an example of a user agent (UA). Other types of user agent include the indexing software used by search providers (web crawlers), voice browsers, mobile apps, and other software that accesses, consumes, or displays web content.
HTTP is designed to permit intermediate network elements to improve or enable communications between clients and servers. High-traffic websites often benefit from web cache servers that deliver content on behalf of upstream servers to improve response time. Web browsers cache previously accessed web resources and reuse them, when possible, to reduce network traffic. HTTP proxy servers at private network boundaries can facilitate communication for clients without a globally routable address, by relaying messages with external servers.
HTTP is an application layer protocol designed within the framework of the Internet protocol suite. Its definition presumes an underlying and reliable transport layer protocol,[11] and Transmission Control Protocol (TCP) is commonly used. However, HTTP can be adapted to use unreliable protocols such as the User Datagram Protocol (UDP), for example in HTTPU and Simple Service Discovery Protocol (SSDP).
HTTP resources are identified and located on the network by Uniform Resource Locators (URLs), using the Uniform Resource Identifiers (URI's) schemes http and https. As defined in RFC 3986, URIs are encoded as hyperlinks in HTML documents, so as to form interlinked hypertext documents.
HTTP/1.1 is a revision of the original HTTP (HTTP/1.0). In HTTP/1.0 a separate connection to the same server is made for every resource request. HTTP/1.1 can reuse a connection multiple times to download images, scripts, stylesheets, etc after the page has been delivered. HTTP/1.1 communications therefore experience less latency as the establishment of TCP connections presents considerable overhead.

Function


The terms Internet and World Wide Web are often used without much distinction. However, the two are not the same. The Internet is a global system of interconnected computer networks. In contrast, the World Wide Web is a global collection of documents and other resources, linked by hyperlinks and URIs. Web resources are usually accessed using HTTP, which is one of many Internet communication protocols.[34]
Viewing a web page on the World Wide Web normally begins either by typing the URL of the page into a web browser, or by following a hyperlink to that page or resource. The web browser then initiates a series of background communication messages to fetch and display the requested page. In the 1990s, using a browser to view web pages—and to move from one web page to another through hyperlinks—came to be known as 'browsing,' 'web surfing' (after channel surfing), or 'navigating the Web'. Early studies of this new behaviour investigated user patterns in using web browsers. One study, for example, found five user patterns: exploratory surfing, window surfing, evolved surfing, bounded navigation and targeted navigation.[35]
The following example demonstrates the functioning of a web browser when accessing a page at the URL http://www.example.org/home.html. The browser resolves the server name of the URL (www.example.org) into an Internet Protocol address using the globally distributed Domain Name System (DNS). This lookup returns an IP address such as 203.0.113.4 or 2001:db8:2e::7334. The browser then requests the resource by sending an HTTP request across the Internet to the computer at that address. It requests service from a specific TCP port number that is well known for the HTTP service, so that the receiving host can distinguish an HTTP request from other network protocols it may be servicing.

History


The term hypertext was coined by Ted Nelson in 1965 in the Xanadu Project, which was in turn inspired by Vannevar Bush's 1930s vision of the microfilm-based information retrieval and management "memex" system described in his 1945 essay "As We May Think". Tim Berners-Lee and his team at CERN are credited with inventing the original HTTP, along with HTML and the associated technology for a web server and a text-based web browser. Berners-Lee first proposed the "WorldWideWeb" project in 1989—now known as the World Wide Web. The first version of the protocol had only one method, namely GET, which would request a page from a server.[12] The response from the server was always an HTML page.[13]
The first documented version of HTTP was HTTP V0.9 (1991). Dave Raggett led the HTTP Working Group (HTTP WG) in 1995 and wanted to expand the protocol with extended operations, extended negotiation, richer meta-information, tied with a security protocol which became more efficient by adding additional methods and header fields.[14][15] RFC 1945 officially introduced and recognized HTTP V1.0 in 1996.
The HTTP WG planned to publish new standards in December 1995[16] and the support for pre-standard HTTP/1.1 based on the then developing RFC 2068 (called HTTP-NG) was rapidly adopted by the major browser developers in early 1996. End-user adoption of the new browsers was rapid. In March 1996, one web hosting company reported that over 40% of browsers in use on the Internet were HTTP 1.1 compliant. That same web hosting company reported that by June 1996, 65% of all browsers accessing their servers were HTTP/1.1 compliant.[17] The HTTP/1.1 standard as defined in RFC 2068 was officially released in January 1997. Improvements and updates to the HTTP/1.1 standard were released under RFC 2616 in June 1999.
In 2007, the HTTP Working Group was formed, in part, to revise and clarify the HTTP/1.1 specification. In June 2014, the WG released an updated six-part specification obsoleting RFC 2616:


HTTP/2 was published as RFC 7540 in May 2015.

HTTP Session


An HTTP session is a sequence of network request-response transactions. An HTTP client initiates a request by establishing a Transmission Control Protocol (TCP) connection to a particular port on a server (typically port 80, occasionally port 8080; see List of TCP and UDP port numbers). An HTTP server listening on that port waits for a client's request message. Upon receiving the request, the server sends back a status line, such as "HTTP/1.1 200 OK", and a message of its own. The body of this message is typically the requested resource, although an error message or other information may also be returned.[1]

Persistent connections


Main article: HTTP persistent connection
In HTTP/0.9 and 1.0, the connection is closed after a single request/response pair. In HTTP/1.1 a keep-alive-mechanism was introduced, where a connection could be reused for more than one request. Such persistent connections reduce request latency perceptibly, because the client does not need to re-negotiate the TCP 3-Way-Handshake connection after the first request has been sent. Another positive side effect is that, in general, the connection becomes faster with time due to TCP's slow-start-mechanism.
Version 1.1 of the protocol also made bandwidth optimization improvements to HTTP/1.0. For example, HTTP/1.1 introduced chunked transfer encoding to allow content on persistent connections to be streamed rather than buffered. HTTP pipelining further reduces lag time, allowing clients to send multiple requests before waiting for each response. Another addition to the protocol was byte serving, where a server transmits just the portion of a resource explicitly requested by a client.

HTTP session state


HTTP is a stateless protocol. A stateless protocol does not require the HTTP server to retain information or status about each user for the duration of multiple requests. However, some web applications implement states or server side sessions using for instance HTTP cookies or hidden variables within web forms.

HTTP Session


The client sends requests to the server and the server sends responses.

Request message


The request message consists of the following:

The request line and other header fields must each end with CR-LF (that is, a carriage return character followed by a line feed character). The empty line must consist of only and no other whitespace.[19] In the HTTP/1.1 protocol, all header fields except Host are optional.
A request line containing only the path name is accepted by servers to maintain compatibility with HTTP clients before the HTTP/1.0 specification in RFC 1945.[20]

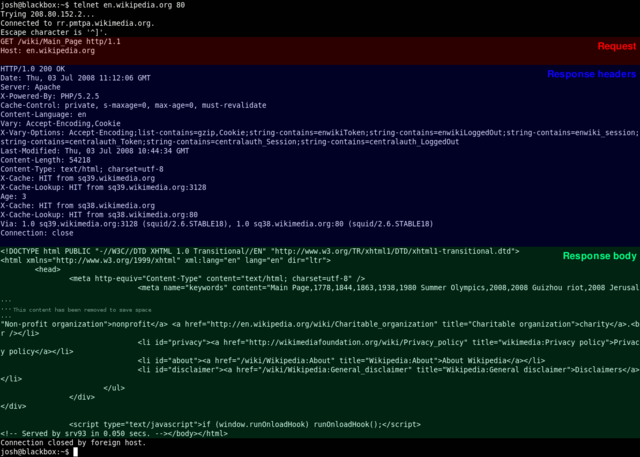

An HTTP 1.1 request made using telnet.[Image: Wikipedia]
Request methods

HTTP defines methods (sometimes referred to as verbs, but nowhere in the specification does it mention verb, nor is OPTIONS or HEAD a verb) to indicate the desired action to be performed on the identified resource. What this resource represents, whether pre-existing data or data that is generated dynamically, depends on the implementation of the server. Often, the resource corresponds to a file or the output of an executable residing on the server. The HTTP/1.0 specification[21] defined the GET, HEAD and POST methods and the HTTP/1.1 specification[22] added five new methods: OPTIONS, PUT, DELETE, TRACE and CONNECT. By being specified in these documents, their semantics are well-known and can be depended on. Any client can use any method and the server can be configured to support any combination of methods. If a method is unknown to an intermediate, it will be treated as an unsafe and non-idempotent method. There is no limit to the number of methods that can be defined and this allows for future methods to be specified without breaking existing infrastructure. For example, WebDAV defined seven new methods and RFC 5789 specified the PATCH method.
Method names are case sensitive.[23][24] This is in contrast to HTTP header field names which are case-insensitive.[25]
GET
The GET method requests a representation of the specified resource. Requests using GET should only retrieve data and should have no other effect. (This is also true of some other HTTP methods.)[1] The W3C has published guidance principles on this distinction, saying, "Web application design should be informed by the above principles, but also by the relevant limitations."[26] See safe methods below.
HEAD
The HEAD method asks for a response identical to that of a GET request, but without the response body. This is useful for retrieving meta-information written in response headers, without having to transport the entire content.
POST
The POST method requests that the server accept the entity enclosed in the request as a new subordinate of the web resource identified by the URI. The data POSTed might be, for example, an annotation for existing resources; a message for a bulletin board, newsgroup, mailing list, or comment thread; a block of data that is the result of submitting a web form to a data-handling process; or an item to add to a database.[27]
PUT
The PUT method requests that the enclosed entity be stored under the supplied URI. If the URI refers to an already existing resource, it is modified; if the URI does not point to an existing resource, then the server can create the resource with that URI.[28]
DELETE
The DELETE method deletes the specified resource.
TRACE
The TRACE method echoes the received request so that a client can see what (if any) changes or additions have been made by intermediate servers.
OPTIONS
The OPTIONS method returns the HTTP methods that the server supports for the specified URL. This can be used to check the functionality of a web server by requesting '*' instead of a specific resource.
CONNECT
[29] The CONNECT method converts the request connection to a transparent TCP/IP tunnel, usually to facilitate SSL-encrypted communication (HTTPS) through an unencrypted HTTP proxy.[30][31] See HTTP CONNECT method.
PATCH
The PATCH method applies partial modifications to a resource.[32]
All general-purpose HTTP servers are required to implement at least the GET and HEAD methods, and all other methods are considered optional by the specification.[33]
Safe methods
Some of the methods (for example, GET, HEAD, OPTIONS and TRACE) are, by convention, defined as safe, which means they are intended only for information retrieval and should not change the state of the server. In other words, they should not have side effects, beyond relatively harmless effects such as logging, web caching, the serving of banner advertisements or incrementing a web counter. Making arbitrary GET requests without regard to the context of the application's state should therefore be considered safe. However, this is not mandated by the standard, and it is explicitly acknowledged that it cannot be guaranteed.
By contrast, methods such as POST, PUT, DELETE and PATCH are intended for actions that may cause side effects either on the server, or external side effects such as financial transactions or transmission of email. Such methods are therefore not usually used by conforming web robots or web crawlers; some that do not conform tend to make requests without regard to context or consequences.
Despite the prescribed safety of GET requests, in practice their handling by the server is not technically limited in any way. Therefore, careless or deliberate programming can cause non-trivial changes on the server. This is discouraged, because it can cause problems for web caching, search engines and other automated agents, which can make unintended changes on the server. For example, a website might allow deletion of a resource through a URL such as http://example.com/article/1234/delete, which, if arbitrarily fetched, even using GET, would simply delete the article.[34]
One example of this occurring in practice was during the short-lived Google Web Accelerator beta, which prefetched arbitrary URLs on the page a user was viewing, causing records to be automatically altered or deleted en masse. The beta was suspended only weeks after its first release, following widespread criticism.[35][34]
Idempotent methods and web applications
Methods PUT and DELETE are defined to be idempotent, meaning that multiple identical requests should have the same effect as a single request. Methods GET, HEAD, OPTIONS and TRACE, being prescribed as safe, should also be idempotent, as HTTP is a stateless protocol.[1]
In contrast, the POST method is not necessarily idempotent, and therefore sending an identical POST request multiple times may further affect state or cause further side effects (such as financial transactions). In some cases this may be desirable, but in other cases this could be due to an accident, such as when a user does not realize that their action will result in sending another request, or they did not receive adequate feedback that their first request was successful. While web browsers may show alert dialog boxes to warn users in some cases where reloading a page may re-submit a POST request, it is generally up to the web application to handle cases where a POST request should not be submitted more than once.
Note that whether a method is idempotent is not enforced by the protocol or web server. It is perfectly possible to write a web application in which (for example) a database insert or other non-idempotent action is triggered by a GET or other request. Ignoring this recommendation, however, may result in undesirable consequences, if a user agent assumes that repeating the same request is safe when it is not.

Response message
The response message consists of the following:
a status line which includes the status code and reason message (e.g., HTTP/1.1 200 OK, which indicates that the client's request succeeded)
response header fields (e.g., Content-Type: text/html)
an empty line
an optional message body
The status line and other header fields must all end with . The empty line must consist of only and no other whitespace.[19] This strict requirement for is relaxed somewhat within message bodies for consistent use of other system linebreaks such as or alone.[37]
Status codes
See also: List of HTTP status codes
In HTTP/1.0 and since, the first line of the HTTP response is called the status line and includes a numeric status code (such as "404") and a textual reason phrase (such as "Not Found"). The way the user agent handles the response depends primarily on the code, and secondarily on the other response header fields. Custom status codes can be used, for if the user agent encounters a code it does not recognize, it can use the first digit of the code to determine the general class of the response.[38]
The standard reason phrases are only recommendations, and can be replaced with "local equivalents" at the web developer's discretion. If the status code indicated a problem, the user agent might display the reason phrase to the user to provide further information about the nature of the problem. The standard also allows the user agent to attempt to interpret the reason phrase, though this might be unwise since the standard explicitly specifies that status codes are machine-readable and reason phrases are human-readable. HTTP status code is primarily divided into five groups for better explanation of request and responses between client and server as named:
Informational 1XX
Successful 2XX
Redirection 3XX
Client Error 4XX
Server Error 5XX
